320W HFC Power Delivery + DOCSIS 3.1 Backhaul- OMG410
Short Description:
Hardened DOCSIS 3.1 Cable Modem
Support Switchable Diplexer
Standalone External Watchdog
Remote Power Control, up to 4 connections
Remote Monitoring for Voltage & Current
Product Detail
Product Tags
Product introduction
➢Hardened DOCSIS 3.1 Cable Modem
➢Support Switchable Diplexer
➢Standalone External Watchdog
➢Remote Power Control, up to 4 connections
➢Remote Monitoring for Voltage & Current
Product Features
Input Power
| Input Power Port | 5/8-24in, 75 Ohm (HFC Coax) |
| Input Voltage | 40~90VAC |
| Input Frequency | 50/60Hz |
| Power Factor | >0.90 |
| Input Current | 10A Max. |
Output Power
| Number Output Power Ports | 4 |
| Output Power Connection | Terminal block, 12 to 26AWG |
| Output Voltage | 110VAC or
220VAC (Optional) |
| Output Current | 3A Max. |
| Output Waveform | Depending on Input |
| Total Power | 320W (Shared) Max. |
| Output Protection | Programmable |
Monitor Items
| Input Power Voltage | V |
| Input Power Current | A |
| Input Power Frequency | Hz |
| Output Power Voltage | V |
| Output Power Current (Total) | A |
| Transformer Temperature | °C |
Boost Transformer

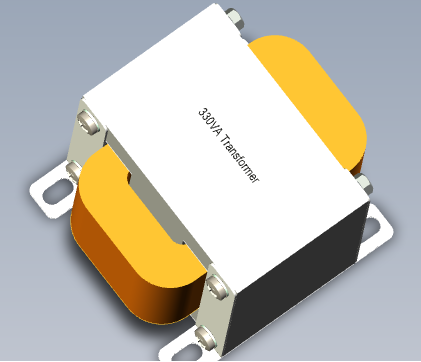

| 3D Screenshot |  |
Boost Transformer
| Network Delivery | Ethernet RJ45, 10/100/1000 | Mbps |
| Number Network Delivery Ports | 1 (Default)or4 (Ethernet Switch Module) (Optional) | |
| Distance | 100 | m |
| LAN Services | TCP/IP, IPv4, IPv6, DHCP, L2VPN | |
| Ethernet Cable and RJ45 |  RJ45 Plug Must be without sheath |
DOCSIS Backhaul (WAN)
| Compliance | DOCSIS 1.1, 2.0, 3.0, 3.1 |
Downstream
| Downstream | ||
| SC-QAM channels | ||
| Number of Channels | 32 | max |
| Level Range (one channel) | North Am (64 QAM and 256 QAM): -15 to +15 | dBmV |
| EURO (64 QAM): -17 to +13 | ||
| EURO (256 QAM): -13 to +17 | ||
| Modulation Type | 64 QAM and 256 QAM | |
| Symbol Rate (nominal) | North Am (64 QAM): 5.056941 | Msym/s |
| North Am (256 QAM): 5.360537 | ||
| EURO (64 QAM and 256 QAM): 6.952 | ||
| Bandwidth | North Am (64 QAM/256QAM with α=0.18/0.12): 6 | MHz |
| EURO (64 QAM/256QAM with α=0.15): 8 | ||
| Throughput | 1600 (8MHz, 32 Channel Bonding) | Mbps |
| OFDM Channels | |
| Signal Type | OFDM |
| Maximum OFDM Channel Bandwidth | 192 MHz |
| Minimum Contiguous-Modulated OFDM Bandwidth | 24 MHz |
| No. of OFDM Channels | 2 |
| Frequency Boundary Assignment Granularity | 25 KHz 8K FFT |
| 50 KHz 4K FFT | |
| Subcarrier Spacing / | 25 KHz / 40 us |
| FFT Duration | 50 KHz / 20 us |
| Modulation Type | QPSK, 16-QAM, 64-QAM,128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, 4096-QAM |
| Variable Bit Loading | Support with subcarrier granularity |
| Support zero bit loaded subcarriers | |
| Level Range (24 MHz mini. Occupied BW) Equivalent Power Spectral Density to SC-QAM of -15 to + 15 dBmV per 6 MHz | -9 dBmV/24 MHz to 21 dBmV/24 MHz |
Upstream
| Frequency Range (edge to edge) | 5-85 / 5-204 | MHz | |
| Output Impedance | 75 | Ω | |
| Maximum Transmit Level | 65 | dBmV | |
| Output Return Loss | ≥ 6 | dB | |
| SC-QAM channels | |||
| Signal Type | TDMA, S-CDMA | ||
| Number of Channels | 8 | max | |
| Modulation Type | QPSK, 8 QAM, 16 QAM, 32 QAM, 64 QAM, and 128 QAM | ||
| Minimum Transmit Level | Pmin = +17 at ≤1280KHz symbol rate |
dBmV |
|
| Pmin = +20 at | 2560KHz symbol rate | ||
| Pmin = +23 at | 5120KHz symbol rate | ||
| Throughput | 200 (8 Channel Bonding) | Mbps | |
| OFDMA Channels | |
| Signal Type | OFDMA |
| Maximum OFDMA Channel Bandwidth | 96 MHz |
| Minimum OFDMA Occupied Bandwidth | 6.4 MHz (for 25 KHz subcarrier spacing) |
| 10 MHz (for 50 KHz subcarriers spacing) | |
| No. of Independently Configurable OFDMA Channels | 2 |
| Subcarrier Channel Spacing | 25, 50 KHz |
| FFT Size | 50 KHz: 2048 (2K FFT); 1900 Max. active subcarriers |
| 25 KHz: 4096 (4K FFT); 3800 Max. active subcarriers | |
| Sampling Rate | 102.4 (96 MHz Block Size) |
| FFT Time Duration | 40 us (25 KHz subcarriers) |
| 20 us (50 KHz subcarriers) | |
| Modulation Type | BPSK, QPSK, 8-QAM, 16-QAM, 32-QAM, 64-QAM,128-QAM, 256-QAM, 512-QAM, 1024-QAM, 2048-QAM, 4096-QAM |
Physical
| Status LEDs | DS, US, Online, Power Delivery#1~#4 |
| Mounting Options | Strand, Pole, Wall |
| Dimension HxWxL (mm) | About 400x220x150mm |
| Weight (kg) | About 10Kg |
Environmental
| Operating Temp. | -40 to +60°C |
| Humidity | 5 to 90%, non-condensing |
