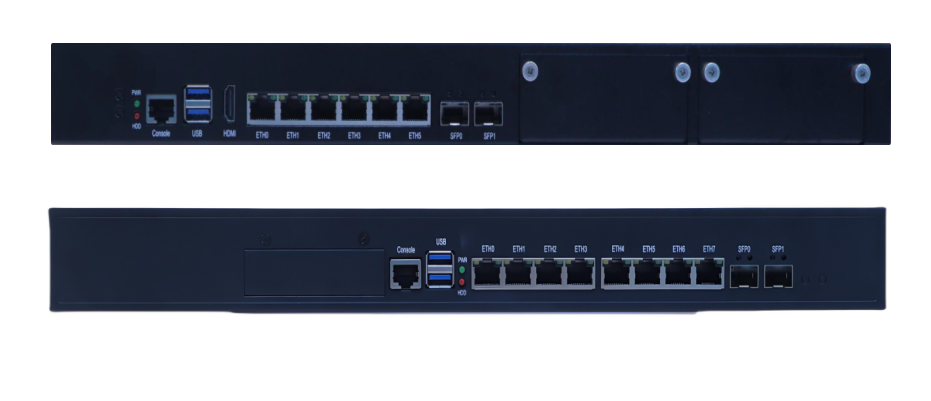

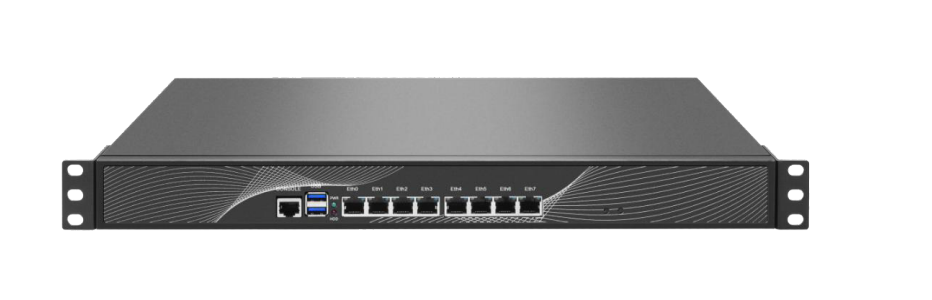

HA-2000 Series IPTV Gateway Server: The All – in – One Solution

Short Description:

The HA-2000 series is a revolutionary device that combines an IP Gateway and an IPTV server. It’s a game – changer for protocol conversion and media distribution.

Send email to us

Product Detail

Product Tags

Versatile Protocol Conversion

The HA-2000 series is a revolutionary device that combines an IP Gateway and an IPTV server. It's a game - changer for protocol conversion and media distribution.

This server expertly converts broadcast network IP streams. It can transform SRT, HTTP, UDP, RTP, RTSP, HLS, and TS file streams into SRT, HTTP, UDP, HLS, and RTMP protocols, adapting to diverse network setups and media players.

Integrated IPTV with Abundant Storage

Beyond conversion, it features an integrated IPTV system. Its large - capacity memory allows users to upload VOD sources, enriching the viewing experience.

Cost - effective One - Stop Solution

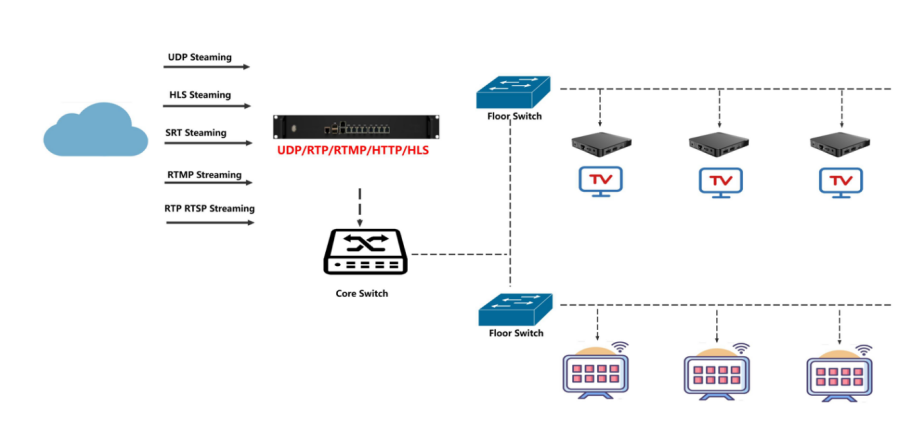

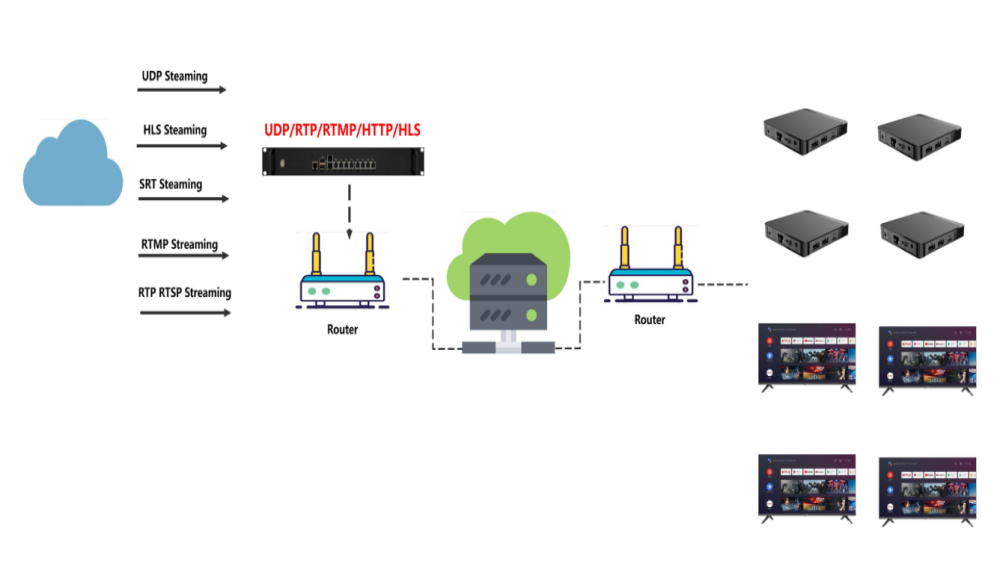

The HA-2000 series stands out for its high cost - performance. It's an all - in - one solution for small CATV head - ends, especially in hotel TV systems. It also serves community, school, building, and hospital IPTV setups. By choosing it, you simplify IPTV installation, cut multi - device costs, and ensure reliable media delivery.

In short, the HA-2000 series is a comprehensive, cost - effective solution for all IPTV requirements.

Specifications

IP Input	DATA CH 1-7 (1000M) ports: IP input over SRT,HTTP, UDP (SPTS), RTP (SPTS), RTSP (over UDP, payload: mpeg TS) and HLS
	TS files uploading through Web management
IP output	First Data port (1000M): IP out over SRT, HTTP (Unicast), UDP (SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
	DATA CH 1-7 (1000M) ports: IP out over HTTP/HLS/RTMP (Unicast) SFP+ output 10000M (for HA-2000A)
System	Channel switching time with STB: HTTP (1-3s), HLS (0.4-0.7s)
	Play programs with APK downloaded android STB and TV
	About 50-120 HD/SD programs (Bitrate at 2-8Mbps) when HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization
	IPTV system function	Support Live channel, VOD, Hotel introduction, Dining, Hotel service, APPS, scenery introduction and so on (Please install IPTV APK)
	IPTV system main interface	support adding scrolling caption, welcome words, pictures, advertisement, video, music (Please install IPTV APK)
	web-based NMS management thru DATA port
General	Demission	482.6mm×328mm×88mm (WxLxH) Depends on config
	Temperature	0~45℃(operation), -20~80℃(storage)
	Power Supply	AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
