MK-LM-01H LoRaWAN Module Specificaton
Short Description:
The MK-LM-01H module is a LoRa module designed by Suzhou MoreLink based on STMicroelectronics’ STM32WLE5CCU6 chip. It supports the LoRaWAN 1.0.4 standard for EU868/US915/AU915/AS923/IN865/KR920/RU864 frequency bands, as well as CLASS-A/CLASS-C node types and ABP/OTAA network access methods. In addition, the module features multiple low-power modes and adopts a standard UART for external communication interfaces. Users can easily configure it via AT commands to access standard LoRaWAN networks, making it an excellent choice for current IoT applications.
Product Detail
Product Tags

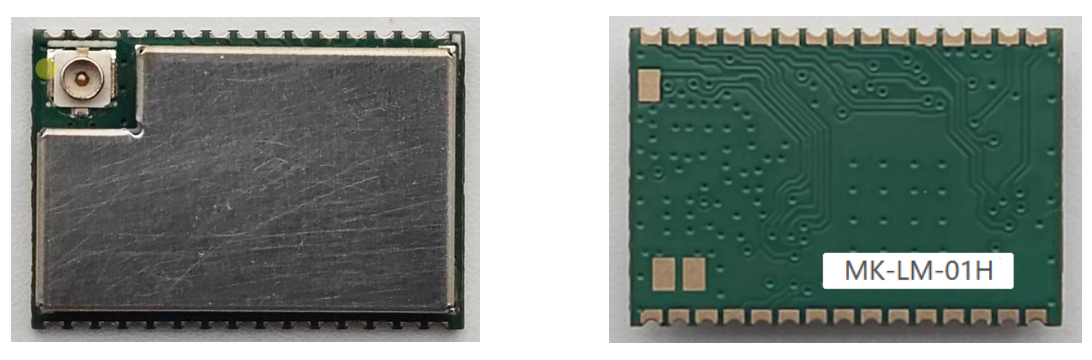

一. Overview
1.1Profile
The MK-LM-01H module is a LoRa module designed by Suzhou MoreLink based on STMicroelectronics' STM32WLE5CCU6 chip. It supports the LoRaWAN 1.0.4 standard for EU868/US915/AU915/AS923/IN865/KR920/RU864 frequency bands, as well as CLASS-A/CLASS-C node types and ABP/OTAA network access methods. In addition, the module features multiple low-power modes and adopts a standard UART for external communication interfaces. Users can easily configure it via AT commands to access standard LoRaWAN networks, making it an excellent choice for current IoT applications.
1.2Features
1.Maxima transmit power up to 20.8dBm, supporting software adjustment and ADR adjustment.
2.Stamp hole design for easy soldering.
3.All chip pins are led out, facilitating secondary development.
4.Wide voltage supply range, supporting 1.8V to 3.6V power supply.
1.3Application
Smart Campus
Wireless Remote Control
Smart Healthcare
Industrial Sensors
二. Specification
2.1RF
|
RF |
Description |
Mark |
|
MK-LM-01H |
850~930MHz |
Support ISM Band |
|
TX Power |
0~20.8dBm |
|
|
Spreading Factor |
5~12 |
-- |
2.2Hardware
|
Parameters |
Value |
Mark |
|
Main Chip |
STM32WLE5CCU6 |
-- |
|
FLASH |
256KB |
-- |
|
RAM |
64KB |
-- |
|
Crystal |
32MHz TCXO |
-- |
|
32.768KHz passive |
-- |
|
|
Dimension |
20 * 14 * 2.8mm |
+/-0.2mm |
|
Antenna Type |
IPEX/ stamp hole |
50Ω |
|
Interfaces |
UART/SPI/IIC/GPIO/ADC |
Please refer to the STM32WLE5CCU6 manual |
|
Footprint |
2 side stamp holes |
-- |
2.3Electrical
|
Electrical |
MIN |
TPY |
MAX |
Unit |
Conditions |
|
Supply Voltage |
1.8 |
3.3 |
3.6 |
V |
Output power can be guaranteed when ≥3.3V; supply voltage must not exceed 3.6V |
|
Communication Level |
- |
3.3 |
- |
V |
It is not recommended to directly connect 5V TTL level to GPIO ports |
|
Transmit Current |
- |
128 |
- |
mA |
Power loss occurs; there are some differences between different modules |
|
Receive Current |
- |
14 |
- |
mA |
|
|
Sleep Current |
- |
2 |
- |
uA |
|
|
Operating Temp. |
-40 |
25 |
85 |
℃ |
|
|
Operating Humidity |
10 |
60 |
90
|
% |
|
|
Storage Temp. |
-40 |
20 |
125
|
℃ |
三. Mechanical Dimensions and Pin Definitions

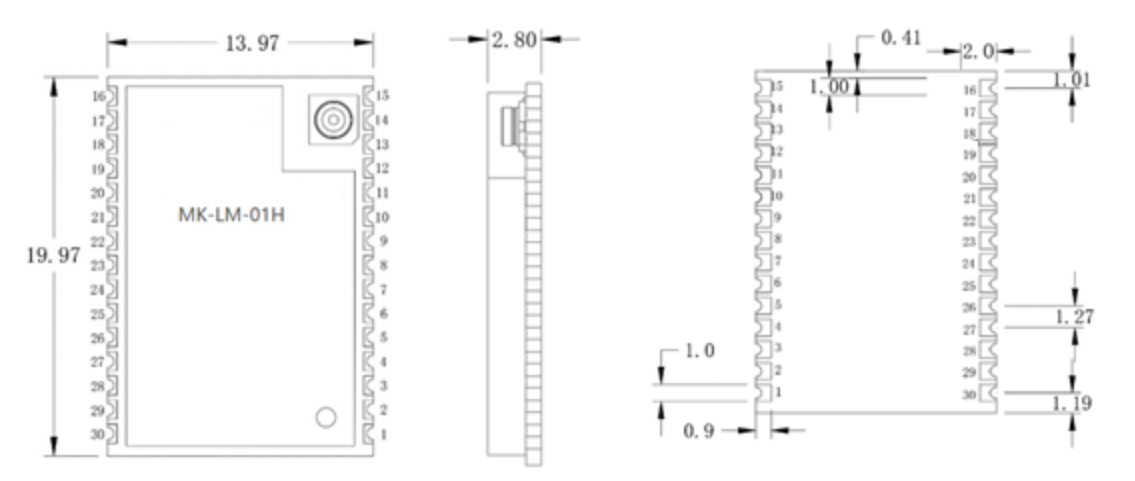

3.1Outline Dimension Drawing
Note
The above dimensions are the document dimensions for structural design. To allow for PCB cutting edge errors, the marked length and width dimensions are 14*20mm. Please leave sufficient space on the PCB. The shielding cover process is direct SMT (Surface Mount Technology) integrated molding. Affected by the solder height, its actual thickness ranges from 2.7mm to 2.8mm.
3.2Pin Definition
| Pin Number | Pin Name | Pin Direction |
Pin Function |
|
1 |
PB3 |
I/O | |
|
2 |
PB4 |
I/O | |
|
3 |
PB5 |
I/O | |
|
4 |
PB6 |
I/O | USART1_TX |
|
5 |
PB7 |
I/O | USART1_RX |
|
6 |
PB8 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
7 |
PA0 |
I/O | -- |
|
8 |
PA1 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
9 |
PA2 |
I/O | -- |
|
10 |
PA3 |
I/O | -- |
|
11 |
PA4 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
12 |
PA5 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
13 |
GND |
GND | |
|
14 |
ANT |
ANT | Antenna interface, stamp hole (50Ω characteristic impedance) |
|
15 |
GND |
GND | |
|
16 |
PA8 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
17 |
NRST |
I | Chip reset trigger input pin, active low (with built-in 0.1uF ceramic capacitor) |
|
18 |
PA9 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
19 |
PA12 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
20 |
PA11 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
21 |
PA10 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
22 |
PB12 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
23 |
PB2 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
24 |
PB0 |
I/O | Active crystal oscillator pin. |
|
25 |
PA15 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
26 |
PC13 |
I/O | Configurable general-purpose IO ports (see STM32WLE5CCU6 manual for details) |
|
27 |
GND |
GND | |
|
28 |
VDD |
VDD | |
|
29 |
SWDIO |
I | FW download |
|
30 |
SWCLK |
I | FW download |
| Note 1: Pins PA6 and PA7 are used as module internal control RF switches, where PA6 = RF_TXEN and PA7 = RF_RXEN. When RF_TXEN=1 and RF_RXEN=0, it is the transmit channel; when RF_TXEN=0 and RF_RXEN=1, it is the receive channel.
Note 2: Pins PC14-OSC32_IN and PC15-OSC32_OUT have a 32.768KHz crystal oscillator connected internally in the module, which can be selected for use by users during secondary development. Note 3: Pins OSC_IN and OSC_OUT have a 32MHz crystal oscillator connected internally in the module, which can be selected for use by users during secondary development. |
|||
