1.INTRODUCTION
MK-U1500 is a outdoor smart PSU module for telecom power supply application, providing three 56Vdc output ports with a total 1500W power ability , for individual usage. When paired with extended battery modules EB421-i through CAN communication protocol, the entire system turns out to be a outdoor smart UPS with a max 2800WH power backup capacity. Both PSU module and the integrated UPS system support a IP67 protection grade, input / output lightning protection ability and pole or wall installation. It can be mounted with base stations in all kinds of working environments, especially on harsh telecom sites.
MK-U1500 offers a full function of EPB series standard smart UPS network management system and BMS system. Module can be freely connected into MoreLink OMC system for site monitoring and management. The photoelectric switch function make it easy to transport the whole telecom site data back through one optical fiber at 1Gbps rate, benefit for a long distance deploym.
2.Product Features
Note: Features may vary based on model or region.
● 3 DC output ports supplying a total power of 1500w
● 1 independent PoE+ port up to IEEE 802.3at protocol
● Batteries extending ability to compose a smart UPS system
● Full function smart network management system, direct access to MoreLink OMC platform
● Photoelectric switch function, long distance data transfer through optical fiber
● Outdoor application protection: IP67
● Natural heat dissipation
● Input/output lightning protection,including ethernet ports
● Pole or wall mounted, easy installation with telecom base station

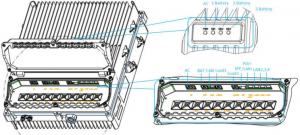

3.HARDWARE SPECIFICATIONS
| Model | MK-U1500 |
| Input voltage range | 90V-264Vac |
| Output voltage | 56Vdc (PSU individual mode) |
| DC output power | 1500W(176V-264Vac, PSU individual mode)； 1500W-1000W(90V-175Vac linear derating, PSU individual mode) |
| Output load ports | 3 DC power output interface, 56V, PSU individual Mode； 2 DC power output interface, 1 Extend battery output interface, UPS mode |
| Single port maximum load current | 20A |
| Paired extend battery model | EB421-i (20AH, Smart UPS mode, battery need purchase separately) |
| Max extend battery amount | 3 |
| Battery communication port | CAN |
| Output power in UPS mode | 1300W @1 battery；1100W @2 battery；900W @3 battery； Each battery in parallel need an individual charging power of 200W |
| Communication Interface | 4 LAN + 1SFP, photoelectric switch supported, 1000Mbps |
| PoE port | 25W, IEEE 802.3at protocol compliant |
| Network Management | OMC system access (Need extra purchase)； Local homepage visual configuration and monitoring |
| Installation | Pole or wall mount |
| Dimensions (H×W×D) | 400 x 350x 145 mm |
| Weight | 12.3kg |
| Heat Dissipation | Natural |
| MTBF | >100000 hours |
| Operating Temperature | -40℃ to 50℃ |
| Storage Temperature | -40℃ to 70℃ |
| Humidity | 5% to 95% RH |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Ingress Protection Rating | IP67 |
| Lightning Protection | AC Input: 10KA differential, 20KA common, 8/20us； LAN/PoE: 3KA differential, 5KA common, 8/20us |
| Surge Protection | AC Input: 1KV differential, 2KV common, 8/20us； LAN/PoE: 4KV differential, 6KV common, 8/20us |
| Altitude | 0-5000m; The maximum ambient temperature for 2000m per 200m is reduced by 1℃ |
